Why Choose HDPE Geocell?
Durability: UV-resistant HDPE for long-lasting performance in harsh conditions.
hdpe geocell Easy Installation: Patented ATRA clips for fast, efficient assembly.
Eco-Friendly: Sustainable solutions with minimal environmental impact.
Cost Savings: Reduces material needs and structural thickness by over 50%.
Enhanced Stability: Improves friction and drainage, preventing soil displacement
Geocell Specifications
HDPE Geocell Weld Spacing: 300-2000 mm
geocell Cell Depth: 50, 75, 100, 125, 150, 200, 300 mm
geocell Sheet Thickness: 0.9-2.0 mm
Performance: HDPE, ≥0.94 g/cm³ density, ≥6000 hrs crack resistance, ≥25 kN/m tensile strength.

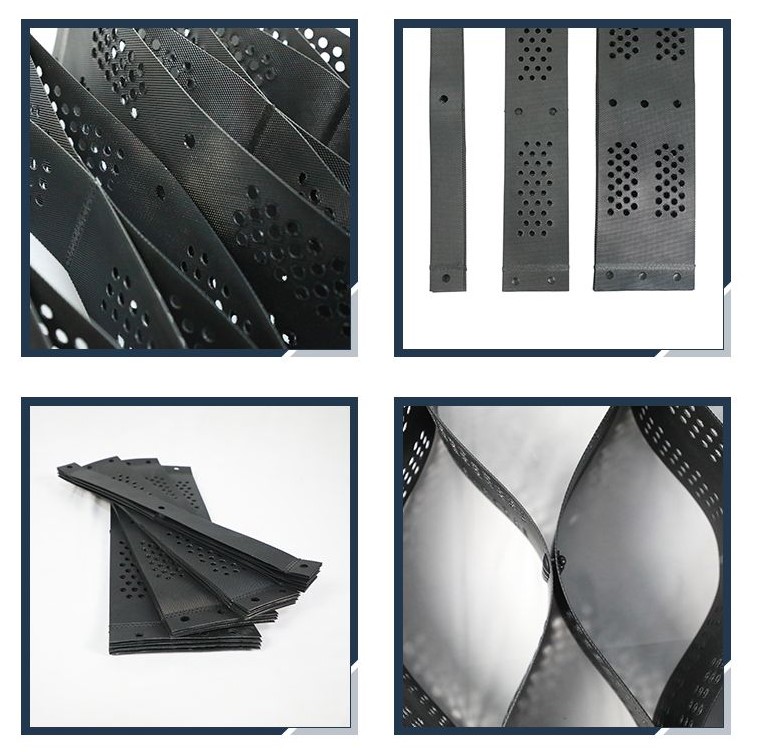

HDPE plastic honeycomb hdpe geocell gravel grid Features:
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance .
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together.
Geocell Technical Parameters:
| Material Properties | Unit | | | | | Test Method |
| Cell Depth | mm | 75 | 100 | 150 | 200 | |
| Polymer Density | g/cm3 | 0.935-0.965 | ASTM D 1505 |
| Environmental Stress Crack Resistance | Hours | >400 | ASTM D 5397 |
| Environmental Stress Crack Resistance | Hours | 6000 | ASTM D 1693 |
| Carbon Black Content | % | 1.5% - 2.0% | ASTM D 1603 |
| Nominal Sheet Thickness Before Texturing | mm | 1.27 -5%,+10% | ASTM D 5199 |
| Nominal Sheet Thickness After Texturing | mm | 1.52-5%,+10% | ASTM D 5199 |
| Strip Puncture Resistance | N | 450 | ASTM D 4833 |
| Seam Peel Strength | N | 1065 | 1420 | 2130 | 2840 | EN ISO13426-1B |
| Seam Efficiency | % | 100 | GRI-GS13 |
| Nominal Expanded Cell Size (width x length) | mm | 320x287,475x508 etc | |
| Nominal Expanded Panel Size (width x length) | m | 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44 | |
Applications:
Plastic geocell grid gravel for road
1. Used for all kinds of road building , driveways , soil stabilization and embankment stabilization
2. Used to stabilize river embankments .
3. Used to prevent landslides .
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed , good performance and greatly reduce the project cost .
