Textured Smooth Plastic HDPE Geocell 1.1mm To 1.8mm Thickness For Highway

Brand Name : zhongloo

Model Number : geocell

Certification : ISO,SGS

Place of Origin : China

MOQ : 1000sqm

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000 Square Meters /Day

Delivery Time : 5-8 work dys

Packaging Details : Pallet or bundled packaging

Material : HDPE

Product Thickness : 1.1mm to 1.8mm

Product Height : 50MM-250MM

Welding Distance : 300-800MM

Product Surface : Textured Smooth

Transport Package : Standard Port Packing or According to Customer′s R

Specification : Cell depth: 50mm, 100mm, 150mm, 200mm, 250mm

Trademark : Good

HS Code : 3920109090

Application : Retaining Wall, Dam, Railway, Highway

Contact Now

Product Description

1.Introduction:
Geocell is a lightweight and flexible three-dimensional, expandable panels made from High-Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.
Geomax Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc.
2.Specifications:
(1).Cell depth: 50mm,100mm,150mm,200mm,250mm
(2). Welding space: 330mm~1600mm
(3). Thickness:
a,1.0mm~1.2mm for smooth geocell
b, 1.5mm~1.7mm for textured geocell
(4). Textured and smooth geocell

Textured Smooth Plastic HDPE Geocell 1.1mm To 1.8mm Thickness For Highway



Product Parameters

Properties Test Method Unit Value
Polymer   - HDPE
Density ASTM D 1505 g/cm3 0.94
Carbon black content ASTM D 1603 % 1.5
Sheet thickness(Smooth) ASTM D 5199 mm 1.1 or 1.2
Sheet thickness(Textured) ASTM D 5199 mm 1.5
Seam peel strength Cell depth
    N 75 mm 1060
    N 100 mm 1420
    N 150 mm 2130
    N 200 mm 2840
Weld spacing   mm 330 356 400 445 660 712
Expanded cell size (WxL)   mm 244X203 259X224 295X250 320X287 488X408 508X475
Expanded panel size(WxL)   m 2.44X6.15 2.56X6.52 4X5 2.56X8.35 2.44X12.29 2.56X13.72
Expanded panel area   m2 15 16.7 20 21.4 30 35.12





Application

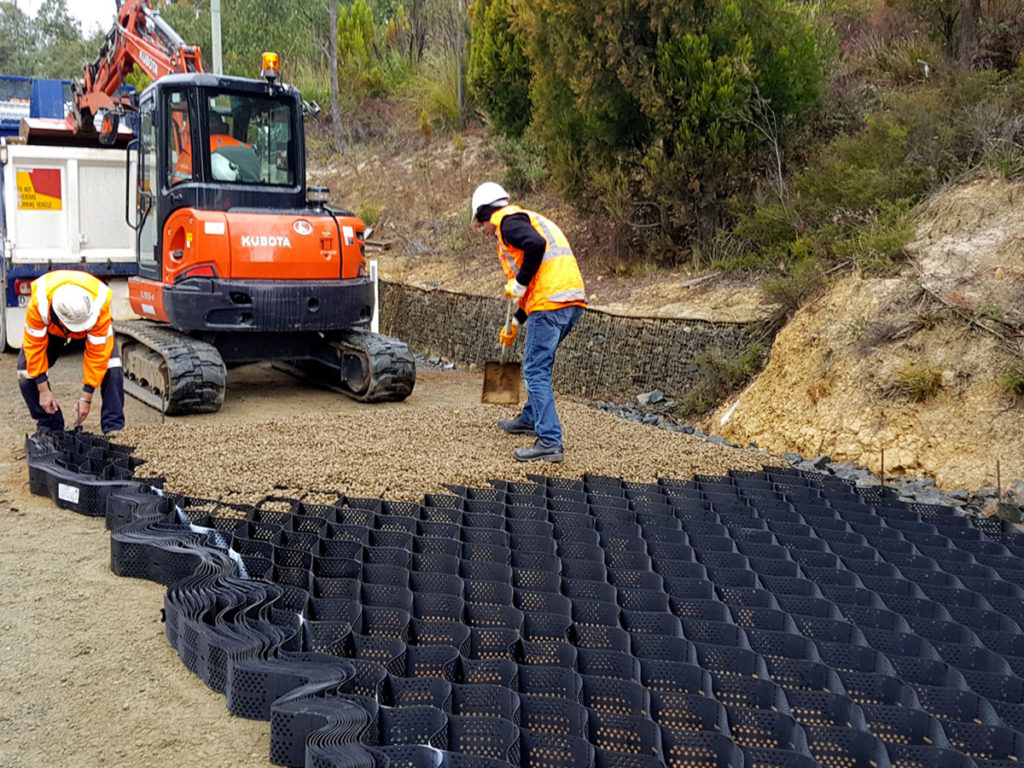

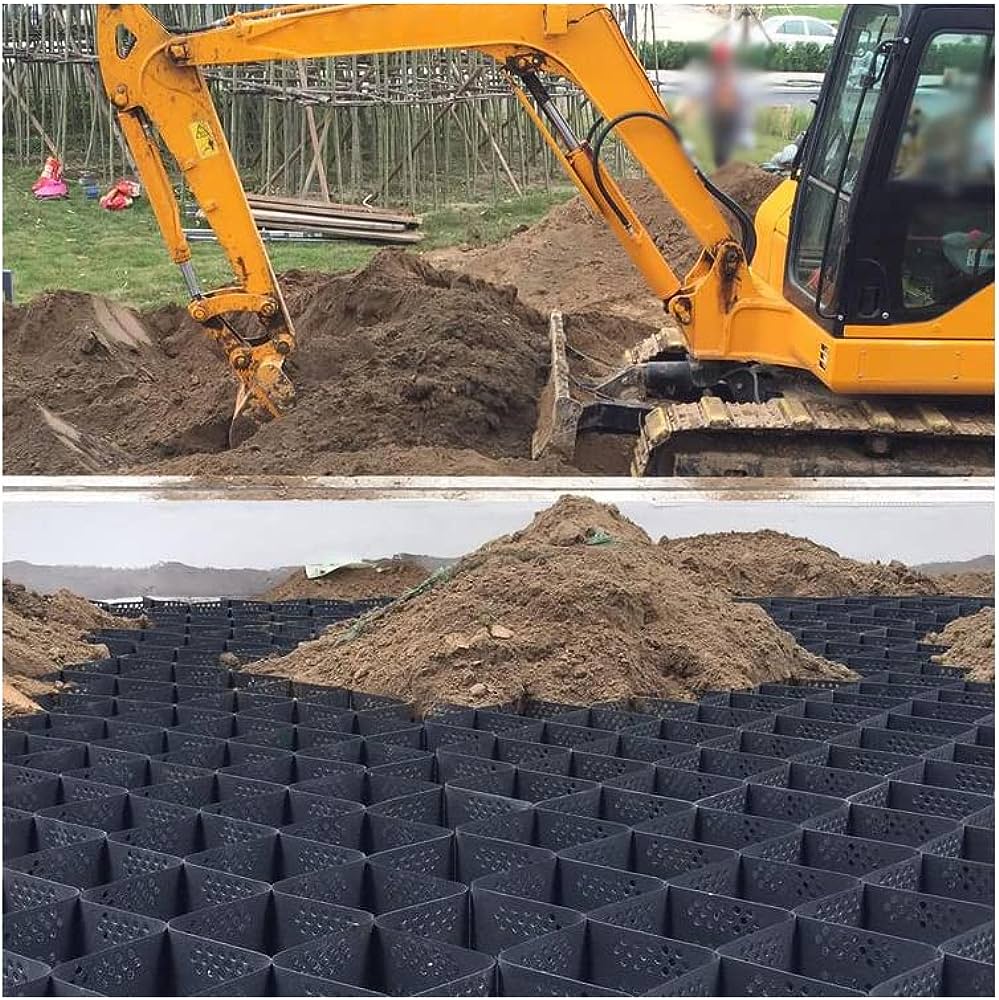

Plastic geocell grid gravel for road
1. Used for all kinds of road building , driveways , soil stabilization and embankment stabilization
2. Used to stabilize river embankments .
3. Used to prevent landslides .
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed , good performance and greatly reduce the project cost .

Textured Smooth Plastic HDPE Geocell 1.1mm To 1.8mm Thickness For Highway
