Brand Name : zhongloo
Model Number : biaxial geogrid
Certification : ISO
Place of Origin : CHINA
MOQ : 1000sqm
Price : To be negotiated
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 10 Ton/Tons per Day
Delivery Time : 5-8 work days
Packaging Details : PP Woven Bags
Product Material : pp pe
Feature : High Tensile Strength
Product name : Plastic Geogrid
Product Color : Black
Product Certificate : CE /ISO9001
Size : 3.95m X 50m, or as Request
Function : Anti-slip, Reinforcement, Base Reinforcement
Width : 1-6m
Roll Length : 50//75/100m
Packing : Paking in PP Bags
Product Description

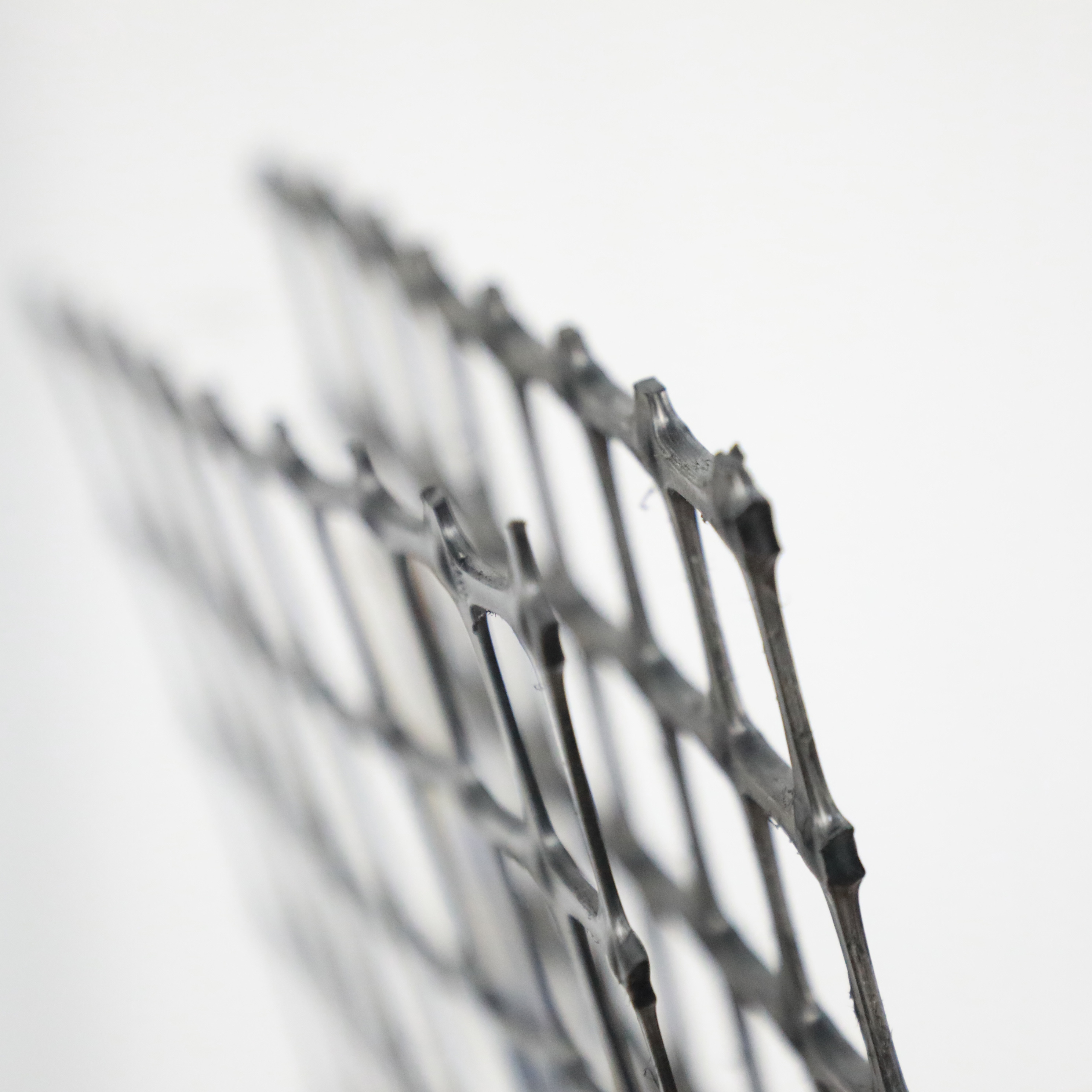

The properties of Biaxial Geogrids, made of Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost.
Product Parameters
Index Properties | Test Method | Unit | 15/15 | 20/20 | 25/25 | 30/30 | 35/35 | 40/40 | 45/45 | 50/50 | |||||||||
MD | CD | MD | CD | MD | CD | MD | CD | MD | CD | MD | CD | MD | CD | MD | CD | ||||
Polymer | - | - | PP | PP | PP | PP | PP | PP | PP | PP | |||||||||
Minimum Carbon Black | ASTM D 4218 | % | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
Ultimate Tensile Strength | ASTM D 6637 | KN/M | 15 | 15 | 20 | 20 | 25 | 25 | 30 | 30 | 35 | 35 | 40 | 40 | 45 | 45 | 50 | 50 | |
Elongation | ASTM D 6637 | % | 15 | 13 | 15 | 13 | 15 | 13 | 15 | 13 | 15 | 13 | 15 | 13 | 15 | 13 | 15 | 13 | |
Tensile Strength @ 2% Strain | ASTM D 6637 | KN/M | 5 | 5 | 7 | 7 | 9 | 9 | 10.5 | 10.5 | 12 | 12 | 14 | 14 | 16 | 16 | 17.5 | 17.5 | |
Tensile Strength @ 5% Strain | ASTM D 6637 | KN/M | 7 | 7 | 14 | 14 | 17 | 17 | 21 | 21 | 24 | 24 | 28 | 28 | 32 | 32 | 35 | 35 |
Product Feature
Improve roadbed bearing capacity, enlarge road lifetime
Prevent road collapse and crack
Prevent soil and water loss in the slope
Could replace steel-plastic geogrid in the coal mine
Application&Installation

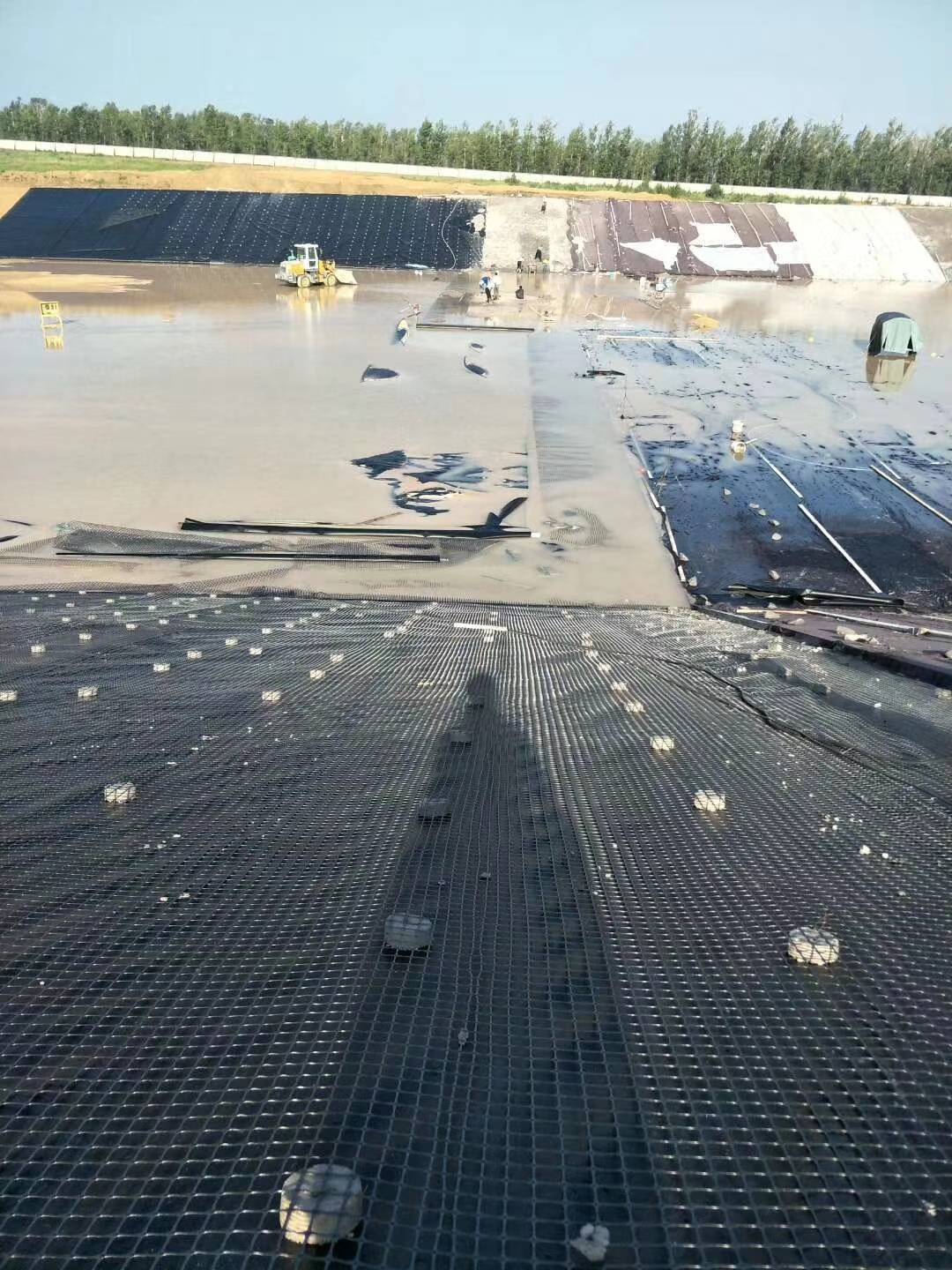

PP biaxial geogrids have been used in tens of thousands of projects worldwide, including roads, working platforms and reinforced foundations.
1,pavement subgrade stabilization.
2,Area/ground stabilization.
3,Pavement base reinforcement.
4,Working&load transfer platforms.
5,Reinforced granular foundation beds.
![]() |
